How to Configure Smartbro using Linksys Wireless Router

Before you Start make sure that the Computer is connected behind the Linksys Router using Ethernet cable (going to Ethernet Port) and the Smartbro Antenna (going to Internet Port). Reboot all the system as well;

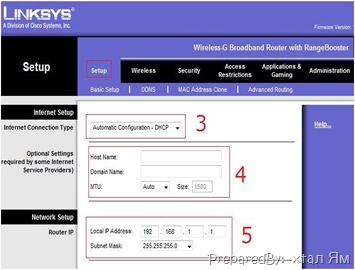

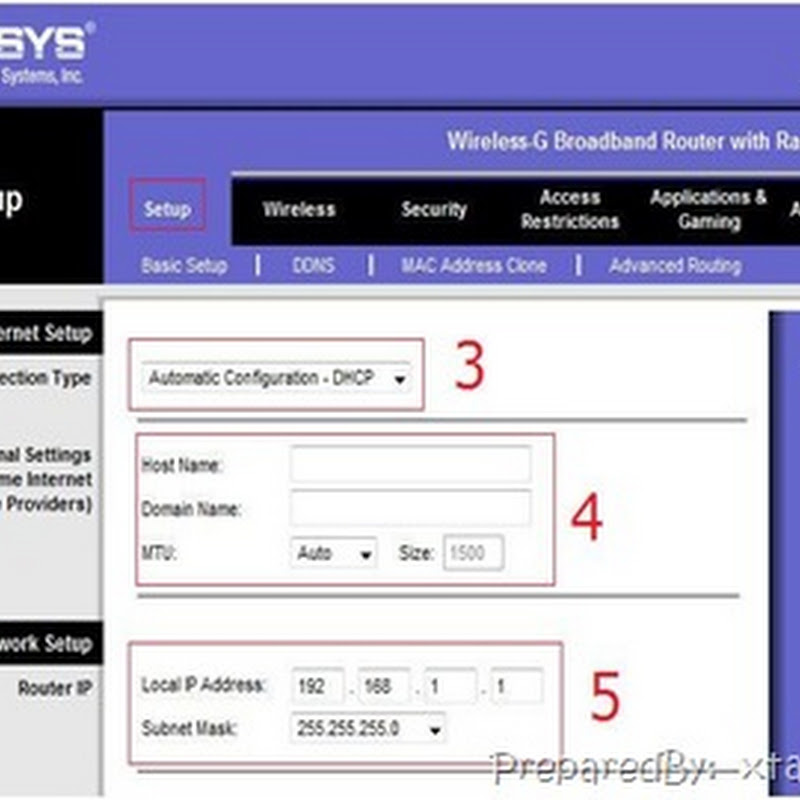

Linksys 1st Page1. Open browser (Internet Explorer or Mozilla Firefox), then on the address bar type in Router default address http://192.168.1.1;
2. If this is your initial set-up type Username is blank and Password "Admin"; If won't work Hard Reset Router for 30 secs reboot Linksys Router; then try  it again…
3. Go to Set-up Tab, Internet Connection Type Should be "Auto Configuration-DHCP"

4. Leave Host Name, Domain Name Blank; MTU select "Auto"

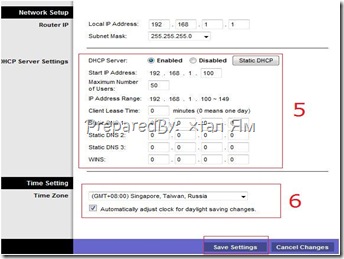

5. Make sure Local IP Linksys 2nd Page
Address is "192.168.1.1" and Subnet Mask "255.255.255.0"; DHCP Server select "Enable"; Static IP Address should be "192.168.1.100" and the rest leave as it is (see the picture below)
6. On Time Zone select "GMT+8:00" to follow PHP Time; put a check on "Automatically adjust clock for daylight saving changes"
7. click on "Save Changes" and reboot the Linksys Router, Smartbro antenna and you computer/s.
8. after 2 mins. or so the computer/s hard wired to Linksys Router should be able to connect online now…


**Firmware Model using is Lynksys WRTG54GR Ver. 1.01**
